How does it work?

Through Treble, which uses WhatsApp Business API, when a user reads or receives a message, we can configure a webhook to be triggered when this occurs.

​
Example use case

Suppose you are a clothing sales company and you want to know when a customer has read or received your first marketing message that talks about a promotion for your new clothing collection. To the first 100 customers who subscribe to your newsletter, you will offer a 10% discount on their first purchase. For this, you can configure a message read webhook in Treble. When a customer reads or receives your message, the webhook will be triggered and send an HTTP request to your endpoint configured in Treble.

​
How to configure a message read or delivery webhook?

1

Enter Treble.ai

Enter Treble.ai through the following URL:

https://app.treble.ai

2

Creating a flow

Go to the “Conversations” section and click the “Create Conversation” button. You can also configure a message read webhook in an existing flow. For this, go to the “Flows” section and click the “Edit” button of your flow.Create Conversation
3

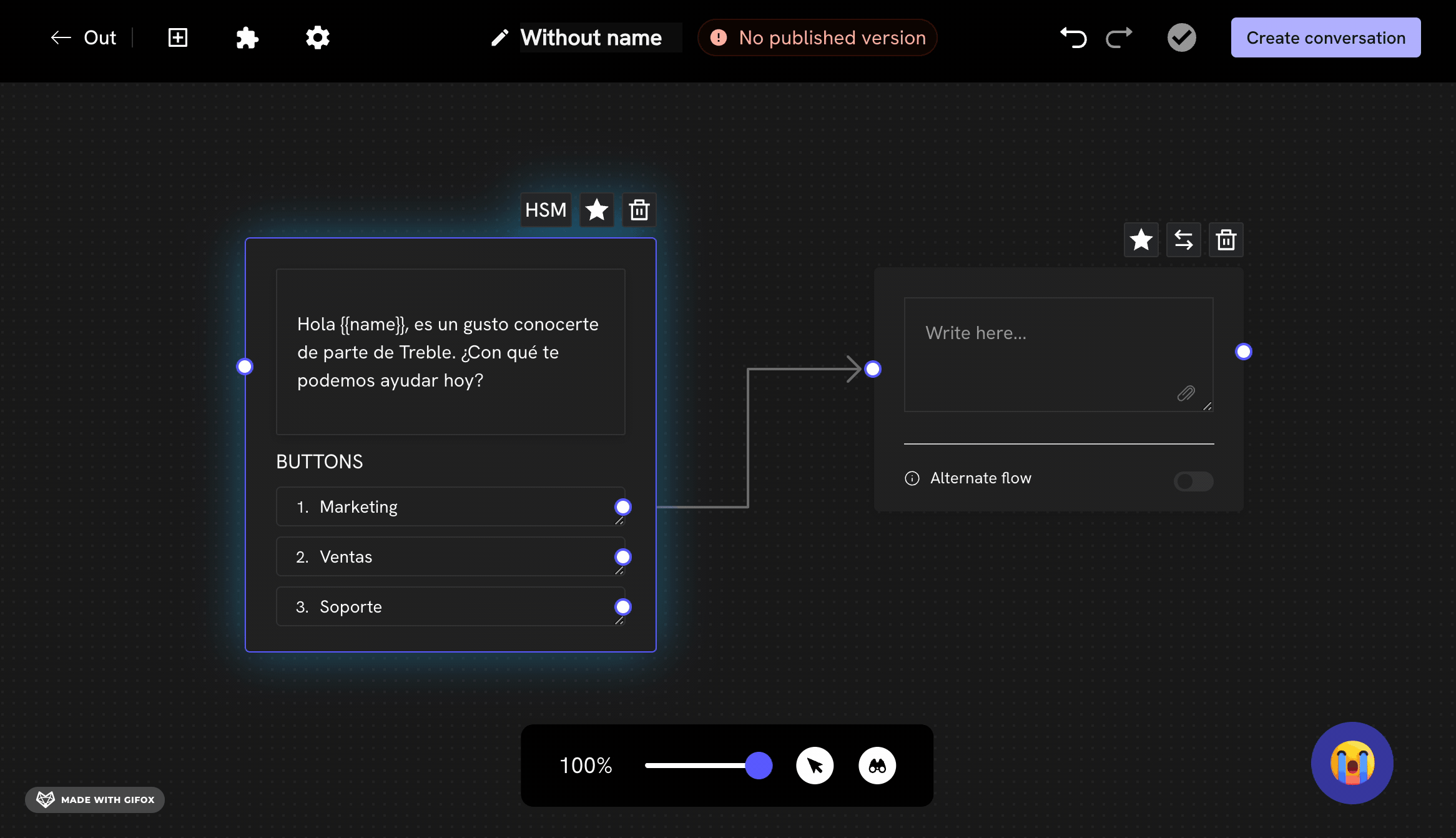

Add message blocks

Let’s add the first message block. Click the “Add block” button. In this case, we’re going to add a previously created and Meta-approved message template (HSM). Then we’ll connect a simple message block with the HSM block.Add a message block
4

Activate webhook and add endpoint

Now, let’s double-click on the message block, a panel will open on the left. In this panel, let’s click the “Webhook” button. Two fields will appear:
  • “Read”: Here you can add the endpoint to which you want the HTTP request to be sent when this message is read.
  • “Delivered”: Here you can add the endpoint to which you want the HTTP request to be sent when this message is received.
Add a message block
5

Save changes

If you’re in a new flow, click the “Publish Conversation” button to save the flow. If you’re in an existing flow, click the “Save” button to save the changes.
Ready! Now, when a customer reads or receives your message, the webhook will be triggered and send an HTTP request to your endpoint configured in Treble.

​
Next step

To learn about the HTTP request body that is sent when a customer reads or receives a message, you can visit the following section:

Message Delivery Webhook Request Body

Message Delivery Webhook Request Body

Message Read Webhook Request Body

Message Read Webhook Request Body

​
Tips

  • Keep in mind that message read and delivery webhooks are triggered when a customer reads or receives a message and only apply to the message you configured. If you want it to be triggered on other messages, you must configure a webhook for each message.
  • The message read webhook may not be triggered if the WhatsApp user has configured the read privacy mode.
